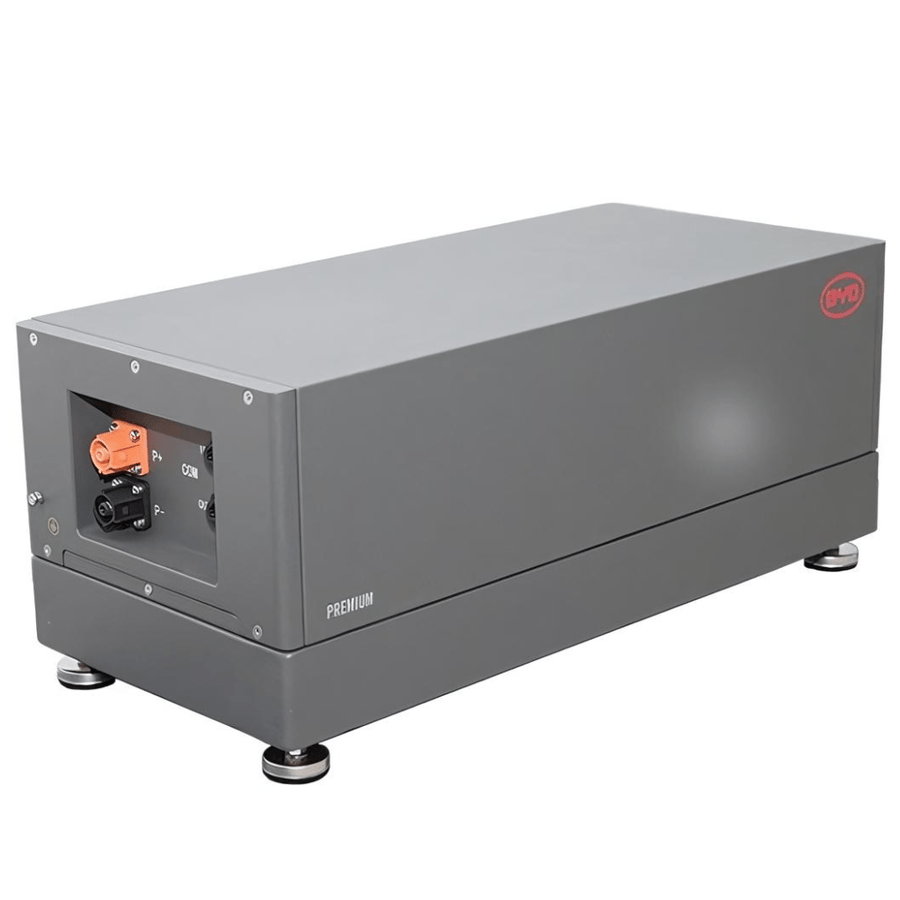

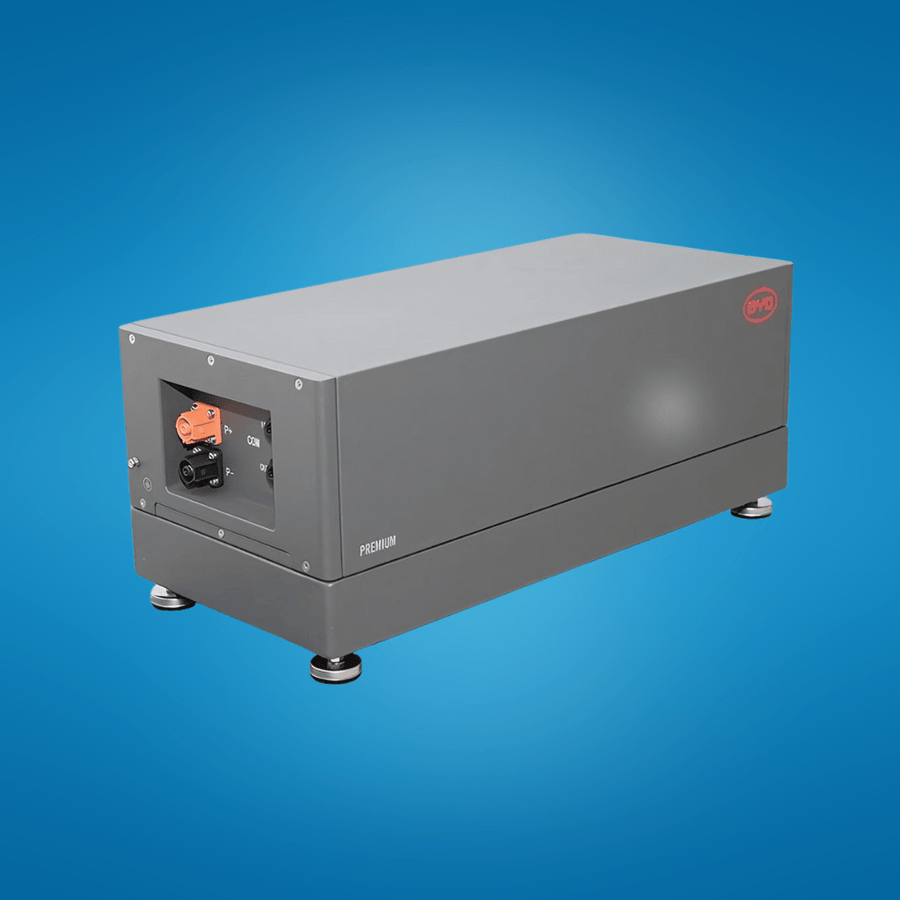

Centralize and streamline your battery system’s power management with the BYD Battery-Box Premium LVS Power Distribution Unit (PDU). This crucial component ensures safe and efficient energy distribution within BYD’s low-voltage storage systems, featuring robust IP55 protection and seamless communication capabilities for enhanced system control.
Key Features
Power distribution hub – Efficiently manages energy flow between battery modules and inverters
IP55 protection – Dust-tight and water-jet resistant for reliable performance
Dual communication ports – CAN and RS485 for comprehensive system integration
Compact design – Space-efficient installation in various configurations
Ground-mounted installation – Stable and secure placement
Plug-and-play compatibility – Designed for BYD Battery-Box Premium LVS systems
Specifications
Model: Battery-Box Premium LVS PDU
Part Number: 12940054-00
Protection Rating: IP55
Communication: CAN, RS485 (inverter compatibility)
Dimensions: 65.0 × 29.8 × 24.5 cm
Weight: 19.0 kg
Installation: Ground mounted
Compatibility: BYD Battery-Box Premium LVS series
System Integration
Acts as central power distribution point in multi-module setups
Enables synchronized operation of parallel battery units
Provides critical safety monitoring and load balancing
Facilitates communication between battery system and inverters
Applications
Residential solar energy storage systems
Commercial battery storage installations
Off-grid and backup power solutions
Hybrid energy management systems
Essential for installers creating comprehensive BYD Battery-Box Premium LVS systems, this PDU ensures optimal performance, safety, and scalability in low-voltage energy storage applications
