Chint 800A Automatic Transfer Switch – NXZM-800S/4B

Model: NXZM-800S/4B

Rated Current: 800A

Poles: 4 Poles

Rated Voltage: 400V AC

Frequency: 50/60Hz

Transfer Type: Automatic

Switching Time: ≤3 seconds

Control Mode: Automatic & Manual

Contact Material: Silver alloy contacts

Protection Features:

Overload protection
Short circuit protection
Over-voltage and under-voltage protection

Mechanical Life: 10,000+ operations

Operating Temperature Range: -25°C to +70°C

Enclosure Material: Flame-retardant plastic

Mounting: Surface or DIN rail mountable

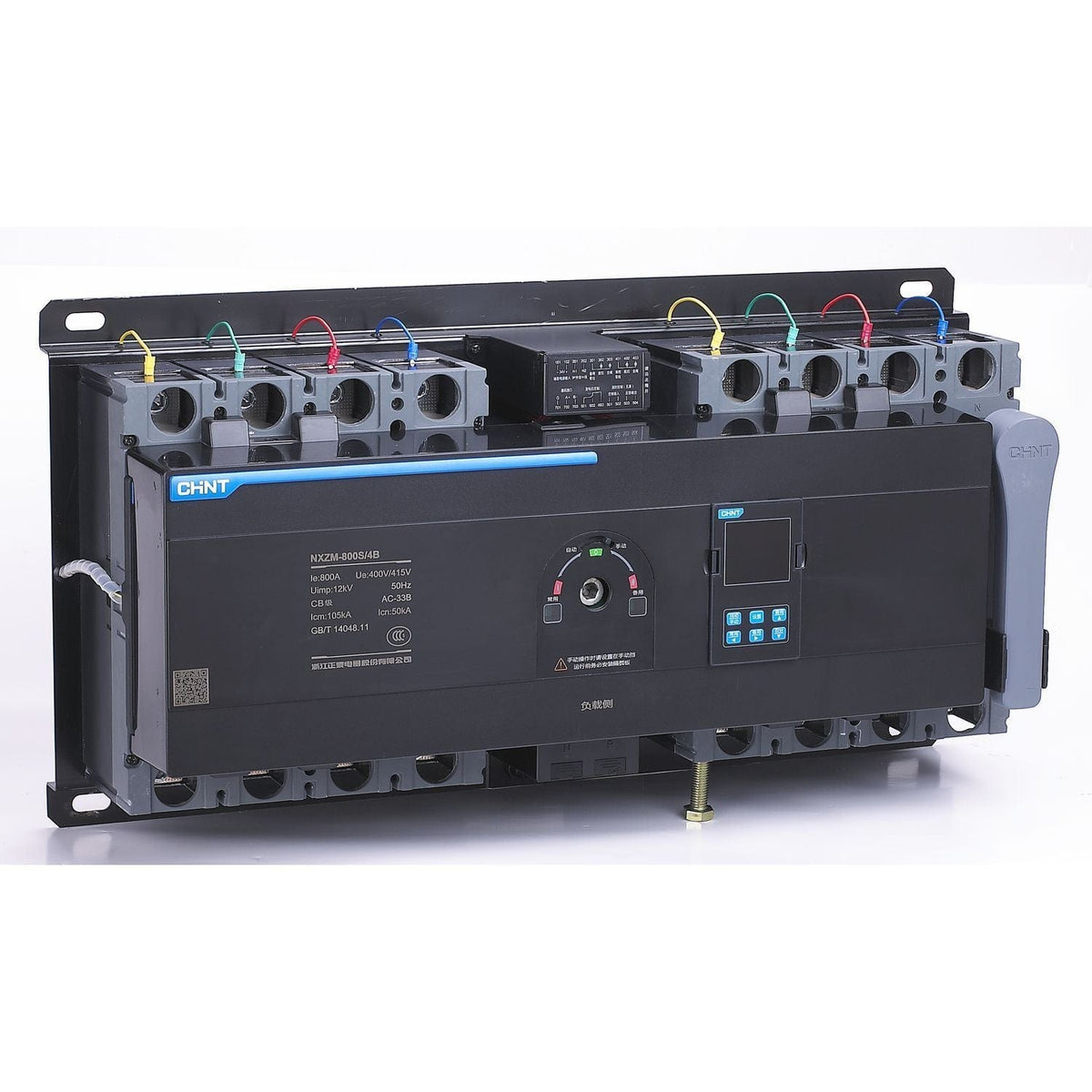

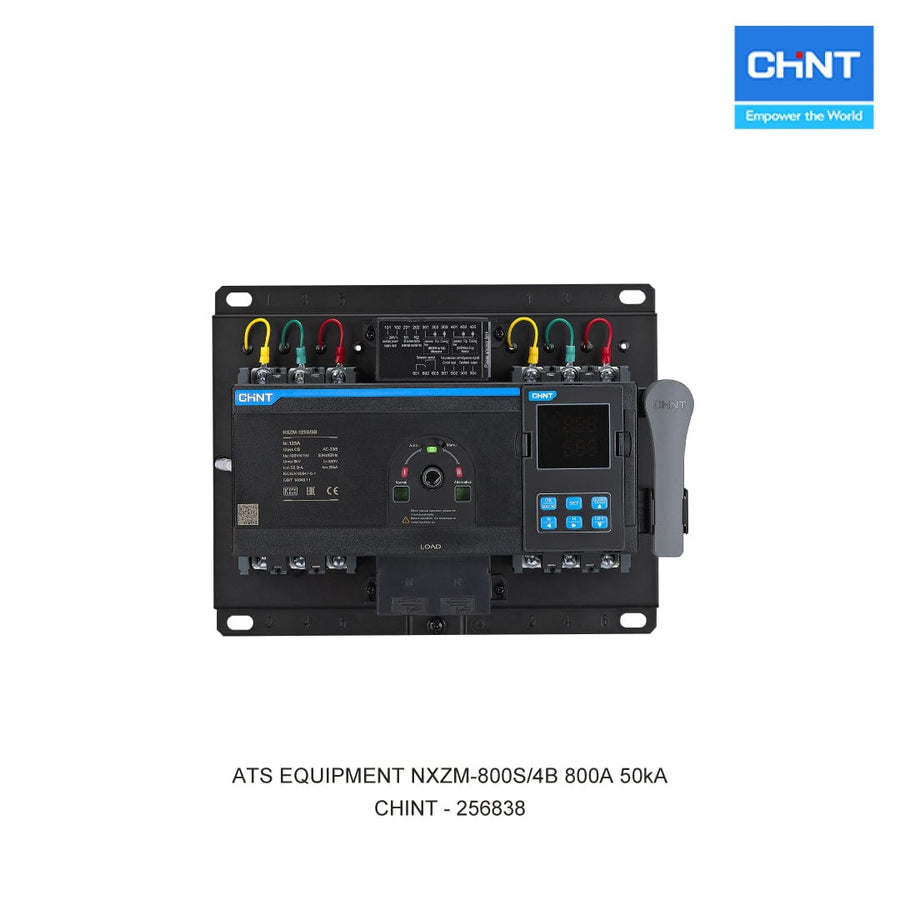

The Chint 800A Automatic Transfer Switch (NXZM-800S/4B) is a robust and reliable solution for managing power transfers between the main and backup sources in industrial, commercial, and large residential setups. Designed to ensure continuous power supply, it offers automatic switching with advanced protective features to safeguard equipment from electrical faults. The switch supports both automatic and manual operation, ensuring versatility and reliability for critical systems.
