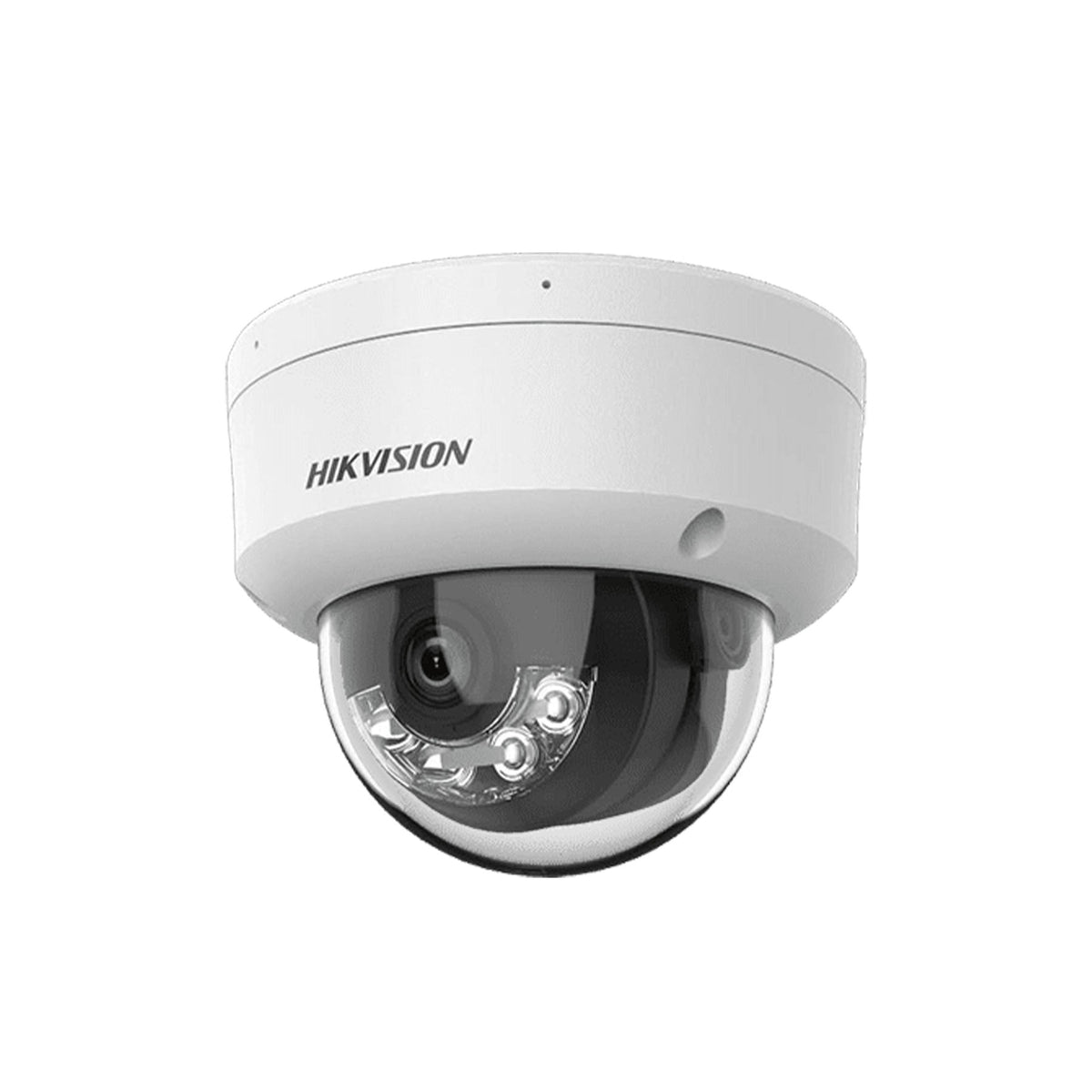

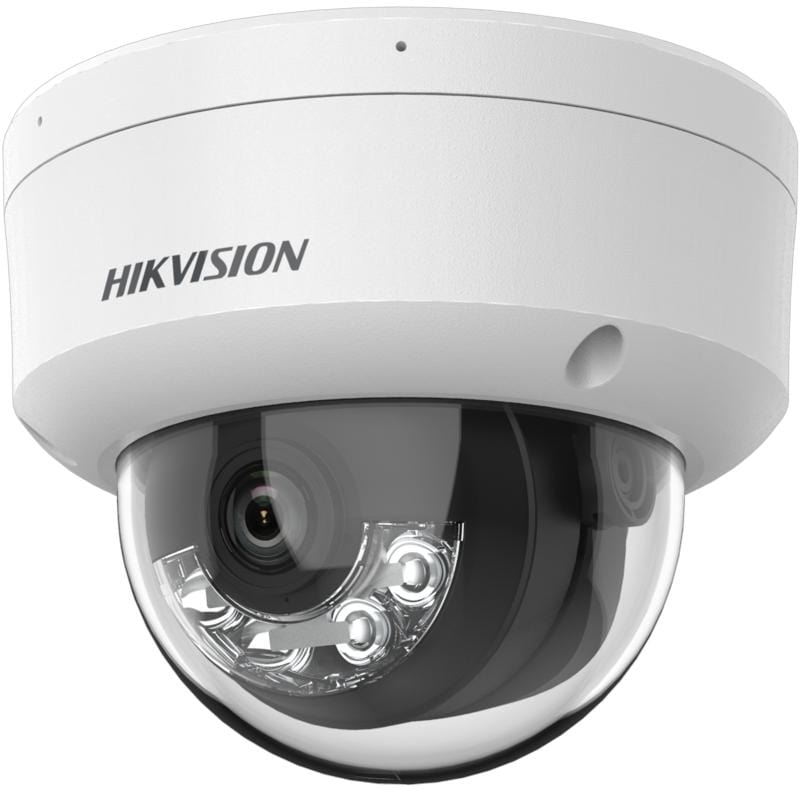

Hikvision 2MP Smart Hybrid Light Fixed Dome Network Camera- DS-2CD1123G2-LIU

High quality imaging with 2 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Built-in microphone for real-time audio security

Efficient H.265+ compression technology

Support on-board storage up to 512 GB (SD card slot) (Optional)

Water and dust resistant (IP67) and vandal resistant (IK08)

Upgrade your surveillance system with the Hikvision 2MP Smart Hybrid Light Fixed Dome Network Camera – DS-2CD1123G2-LIU. This advanced camera offers 2MP high-definition video with hybrid light technology for clear imaging in various lighting conditions. Its fixed dome design provides wide-area coverage, making it ideal for both indoor and outdoor security monitoring.
Camera

Image Sensor1/2.9″ Progressive Scan CMOS

Max. Resolution1920 × 1080

Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & NightIR cut filter

Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens TypeFixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens MountM12

Iris TypeFixed

ApertureF1.6

DORI

DORI
2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Supplement Light TypeIR,White Light

Supplement Light RangeUp to 30 m

Smart Supplement LightYes

IR Wavelength850 nm

Video

Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

Video

Bit Rate32 Kbps to 8 Mbps

H.264 TypeBaseline Profile,Main Profile,High Profile

H.265 TypeMain Profile

Bit Rate ControlCBR,VBR

Region of Interest (ROI)1 fixed region for main stream

Audio

Audio TypeMono sound

Environment Noise FilteringYes

Audio Sampling Rate8 kHz/16 kHz

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP

User/Host
Up to 32 users
3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect

Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)Digital WDR

SNR≥ 52 dB

Day/Night Switch Day ,Night, Auto, Schedule

Image EnhancementBLC,HLC,3D DNR

Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask4 programmable polygon privacy masks

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage-F: Built-in memory card slot, support microSD/ micro SDHC / micro SDXC card, up to 512 GB

Built-in Microphone Yes

Reset Key-F: Yes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception

Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material Metal & Plastic

DimensionØ121.4 mm × 97.7 mm (Ø4.8″ × 3.8″)

Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight Approx. 550 g (1.2 lb.)

With Package Weight Approx. 800 g (1.8 lb.)

Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language English, Ukrainian

General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7

Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013,IK08: IEC 62262:2002
