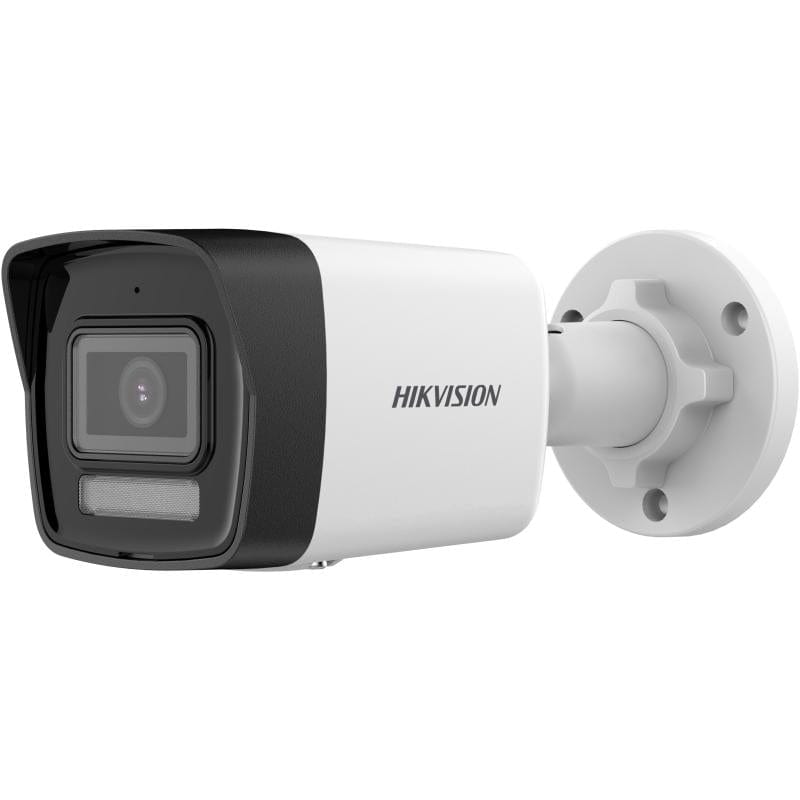

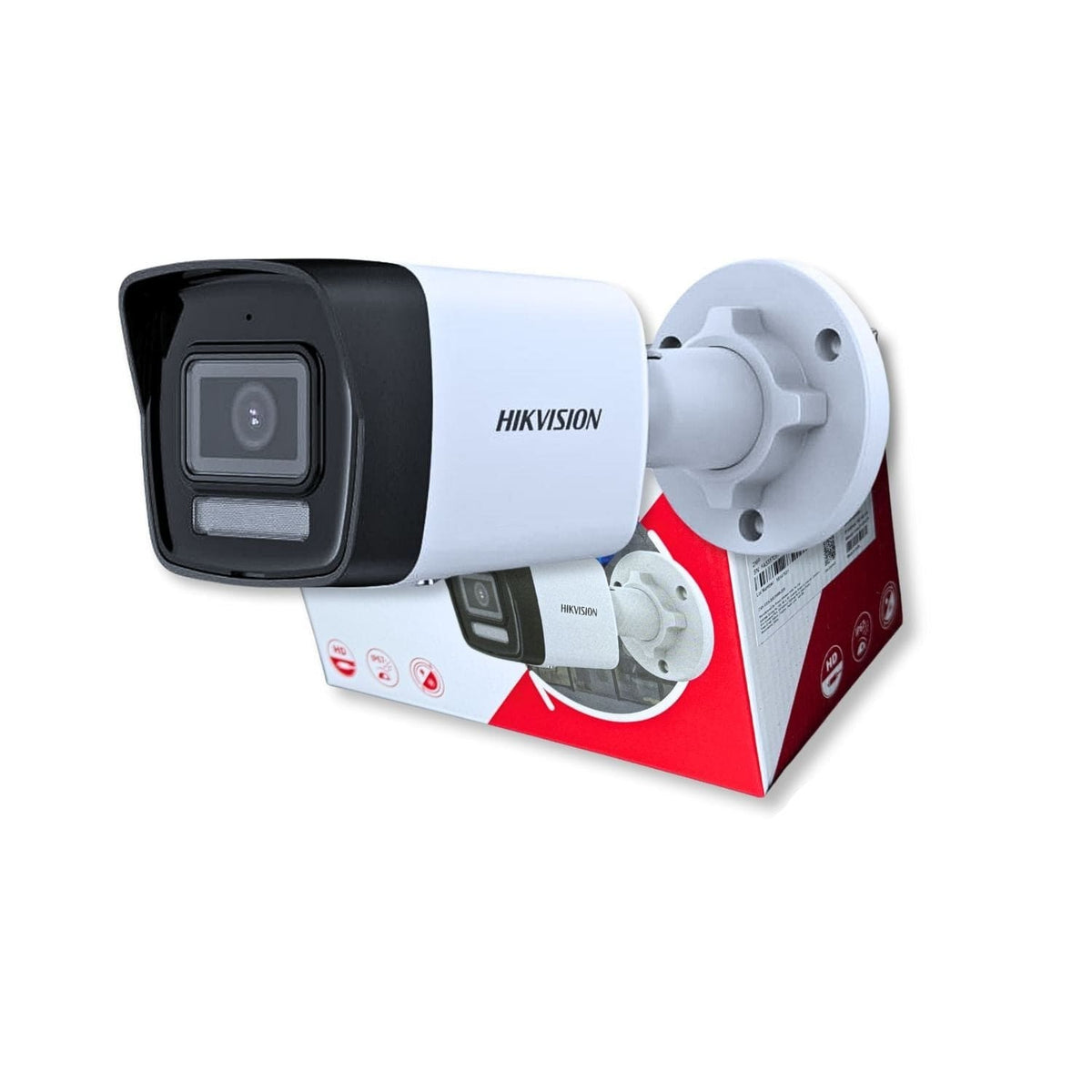

Hikvision 6MP Smart Hybrid Light Fixed Bullet Network Camera – DS-2CD1063G2-LIU

High quality imaging with 6 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Water and dust resistant (IP67)

Efficient H.265+ compression technology

Support on-board storage up to 256 GB (SD card slot) (Optional)

Secure your property with the Hikvision 6MP Smart Hybrid Light Fixed Bullet Network Camera – DS-2CD1063G2-LIU. This high-performance camera offers 6MP ultra-clear video resolution, ensuring detailed surveillance footage. With smart hybrid light technology, it delivers superior imaging in both day and night settings. Its fixed bullet design is perfect for outdoor security, providing long-range monitoring with advanced clarity.
Camera

Image Sensor1/2.4″ Progressive Scan CMOS

Max. Resolution 3200 × 1800

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens MountM12

Iris TypeFixed

ApertureF1.6

DORI

DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

Supplement Light Type IR, White Light

Supplement Light Range
IR: up to 30 m

White Light: up to 20 m

Smart Supplement Light Yes

IR Wave length 850 nm

Video

Main Stream
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps

H.264 Type Baseline Profile, Main Profile, High Profile

H.265 Type Main Profile

Bit Rate Control CBR, VBR

Region of Interest (ROI)1 fixed region for main stream

Audio

Audio Type Mono sound

Environment Noise Filtering Yes

Audio Sampling Rate 8 kHz/16 kHz

Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host
Up to 32 users
3 user levels: administrator, operator, and user

Client VMS-4200, Hik-Connect

Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
