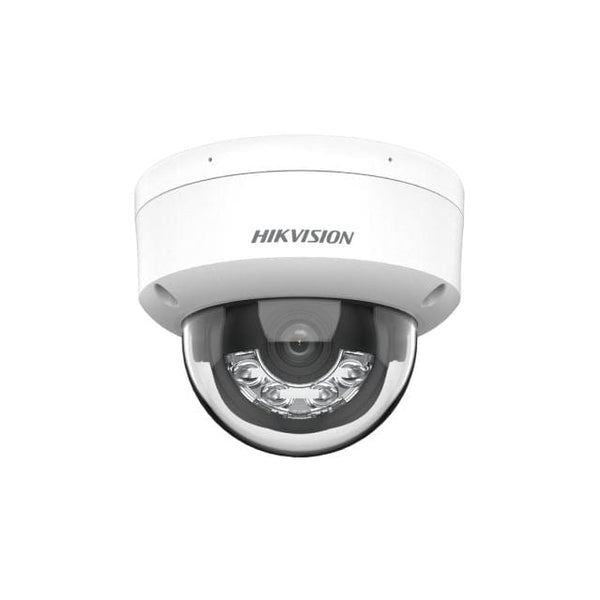

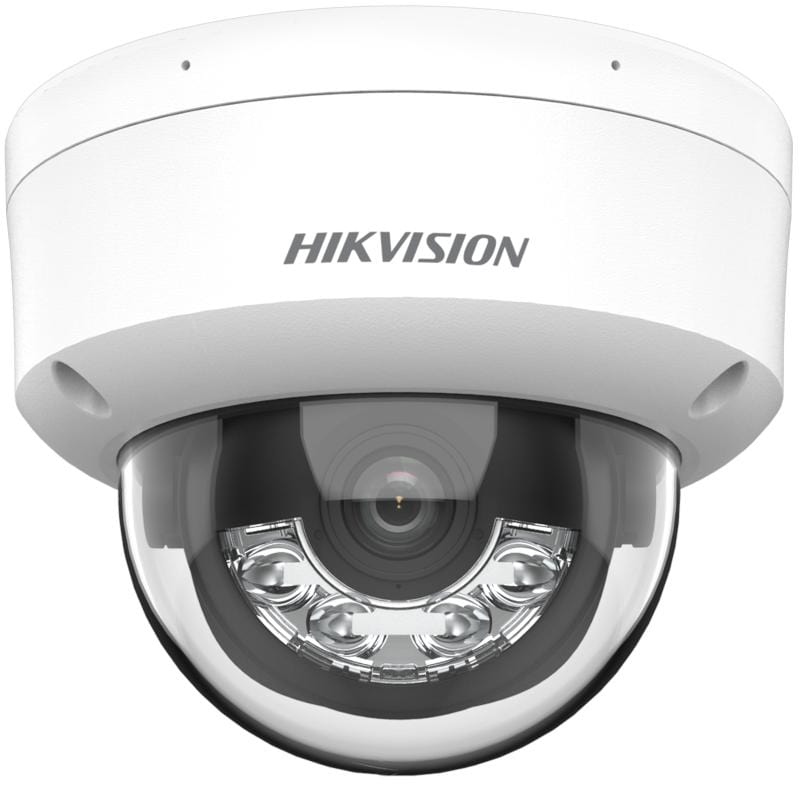

Hikvision 6MP Smart Hybrid Light Fixed Dome Network Camera – DS-2CD1163G2-LIU

High quality imaging with 6 MP resolution

Support Human and Vehicle Detection

Smart Hybrid Light: advanced technology with long range

Efficient H.265+ compression technology

Support on-board storage up to 512 GB (SD card slot) (Optional)

Built-in microphone for real-time audio security

Water and dust resistant (IP67) and vandal resistant (IK08)

Achieve superior surveillance with the Hikvision 6MP Smart Hybrid Light Fixed Dome Network Camera – DS-2CD1163G2-LIU. Offering crystal-clear 6MP resolution, this camera delivers sharp images in both bright and low-light conditions, thanks to its hybrid light technology. Its fixed dome design ensures comprehensive coverage, making it an excellent choice for high-security indoor and outdoor environments.
Camera

Image Sensor1/2.4″ Progressive Scan CMOS

Max. Resolution3200 × 1800

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens MountM12

Iris Type Fixed

ApertureF1.6

DORI

DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

Supplement Light Type IR, White Light

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength850 nm

Video

Main Stream
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps

H.264 Type Baseline Profile, Main Profile, High Profile

H.265 Type Main Profile

Bit Rate Control CBR, VBR

Region of Interest (ROI)1 fixed region for main stream

Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio

Audio Type Mono sound

Environment Noise Filtering Yes

Audio Sampling Rate8 kHz/16 kHz

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect

ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

User/Host
Up to 32 users
3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect

Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
