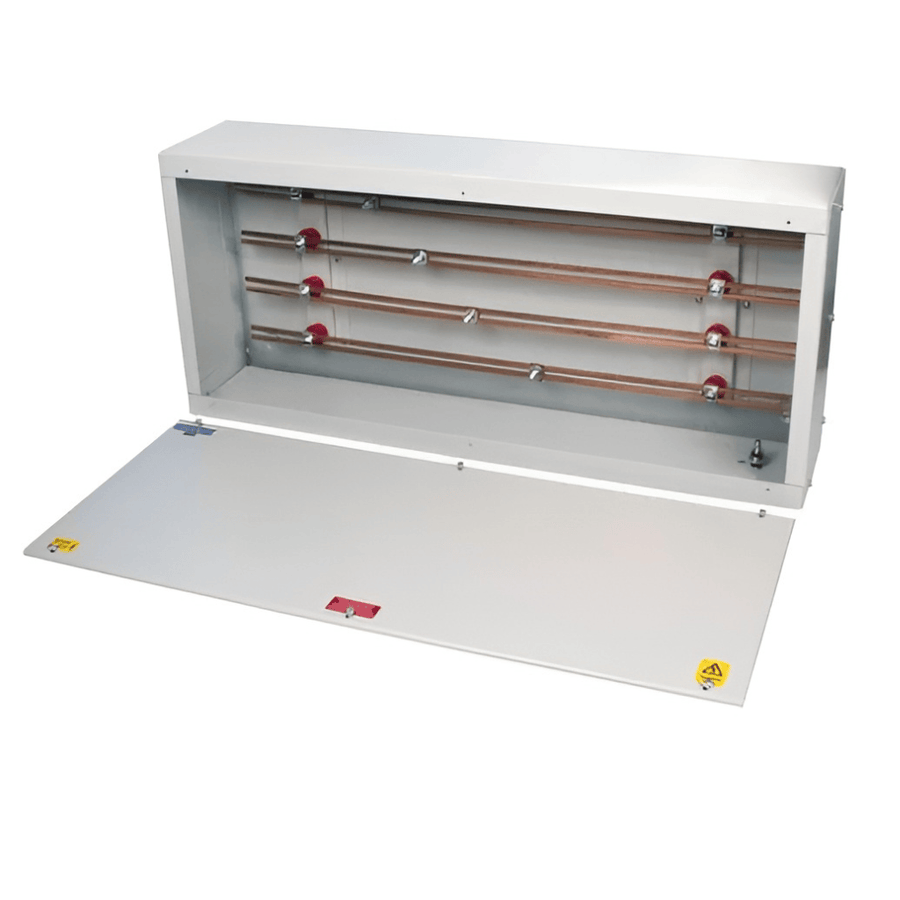

Indoasian Busbar Chamber 800A IP3X – 4ft

Power large-scale electrical distribution with the 800A Busbar Chamber in a substantial 4ft length. Engineered for heavy-duty industrial applications, this chamber delivers massive 800A capacity with superior 35kA short circuit protection. Featuring rugged 1.6mm cold-rolled steel construction and secure square cage clamps, it provides a reliable backbone for high-capacity power distribution systems.
Key Features

Heavy-Duty Capacity: 800A rating for high-load electrical systems

Extended Length: 4ft design for comprehensive power routing

Maximum Short Circuit Protection: 35kA Icc rating for critical safety

Industrial Connection System: Square cage clamps with multiple connection points

Rugged Construction: 1.6mm cold-rolled steel with protective epoxy coating

Technical Specifications

Current Rating: 800A

Length: 4ft

Short Circuit Rating: 35kA Icc

Voltage: 230/400V AC

Protection: IP3X

Mounting: DIN Rail

Terminals: Square Cage Clamp

Material: 1.6mm Cold Rolled Steel (RAL7035)

The 800A 4ft Busbar Chamber delivers uncompromising performance for large-scale power distribution requirements. Its heavy-duty capacity and extended length make it the ultimate solution for electrical engineers and contractors designing robust, high-capacity distribution networks in industrial facilities and large commercial installations
