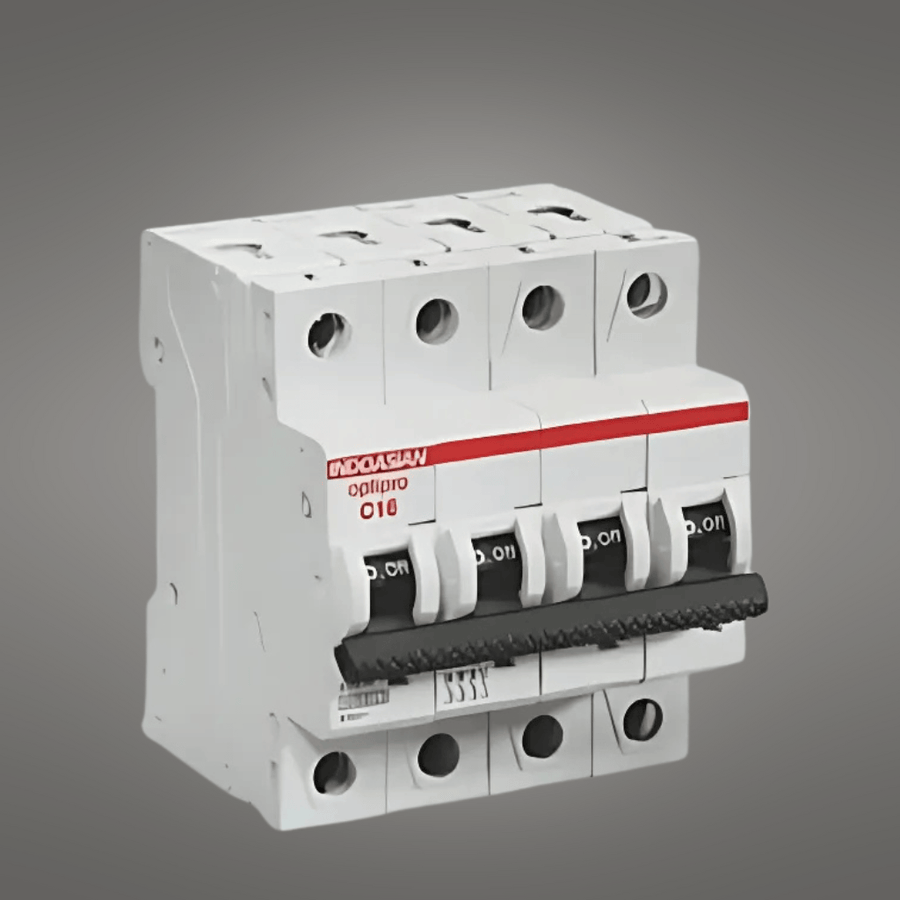

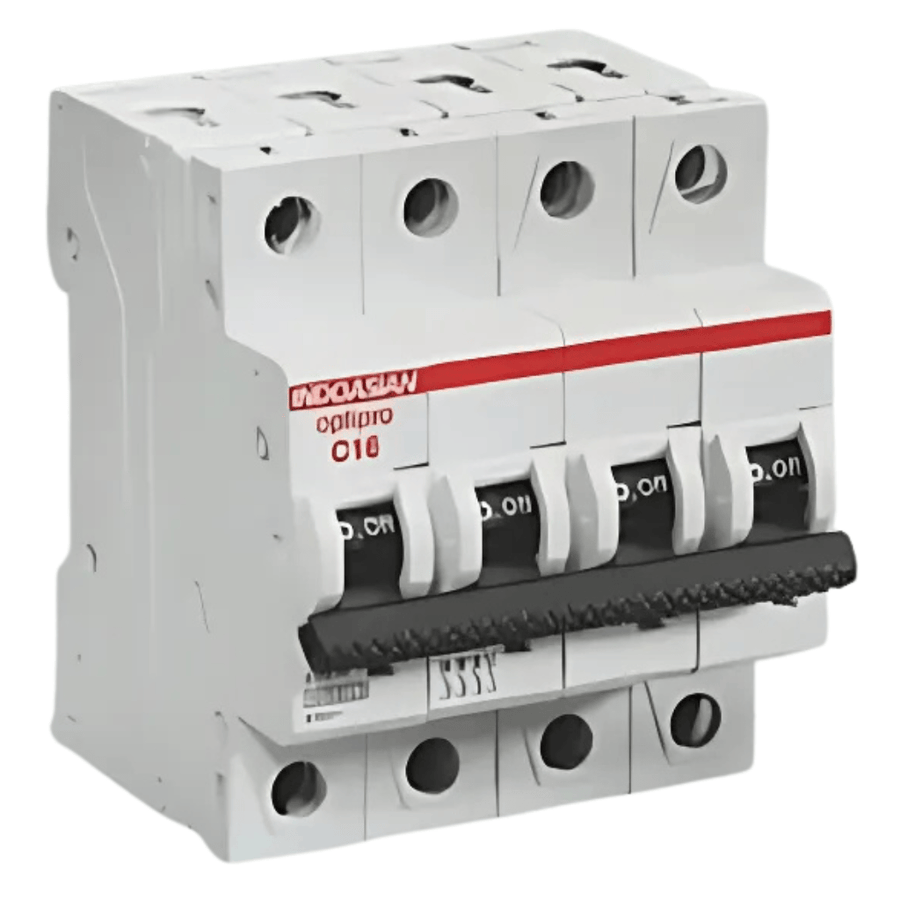

Indoasian Caretron Four Pole C-Curve MCB FP Series (6A-63A)

Ensure comprehensive circuit protection with the Indoasian Caretron Four Pole C-Curve MCB. Designed for complex three-phase systems with neutral line protection, this ISI-certified MCB range (6A to 63A) delivers reliable 6kA breaking capacity. Operating at 240V/415V AC, its four-pole design provides complete disconnection of all phases and neutral, making it ideal for industrial and commercial applications requiring full circuit isolation and enhanced safety.
Key Features

Complete Circuit Isolation: Four-pole design disconnects all three phases and neutral

High Voltage Operation: Suitable for 240V/415V AC systems

Comprehensive Current Range: Available from 6A to 63A for various applications

Industrial Protection: 6kA breaking capacity for robust short-circuit protection

Secure Terminals: 25 sq. mm terminals with IP20 protection for safe installation

Technical Specifications

Current Ratings: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

Poles: Four Pole

Breaking Capacity: 6kA

Operating Voltage: 240V/415V AC, 60V DC per pole

Terminals: 25 sq. mm

Protection Class: IP20

Phase: 3 Phase

The Indoasian Caretron Four Pole MCB delivers ultimate protection for sophisticated electrical systems, providing complete phase and neutral disconnection. Its robust construction and versatile voltage compatibility make it the ideal choice for industrial and commercial installations requiring maximum safety and reliable circuit protection in demanding environments
