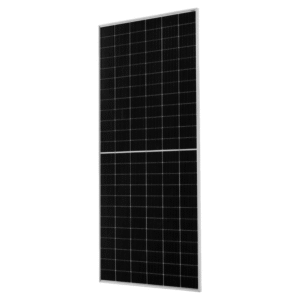

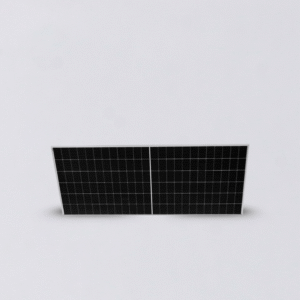

JA 565W Solar Panel – JAM72S30-565

The JA Solar JAM72S30-565 is a top-tier solar module built for commercial and large-scale utility solar installations. With a 565 W nominal power, mono-PERC half-cell architecture, and 1500 V system voltage rating, it offers excellent energy yield, reduced BoS (Balance of System) costs, and strong performance in real-world conditions. Its durable frame, robust glass, and high mechanical load resistance make it ideal for rooftop and utility scale arrays in challenging environments. Whether you’re designing large solar farms, commercial rooftop installations, or high-voltage arrays to maximize throughput, this module is engineered to deliver high efficiency, long-term reliability, and favorable return on investment. Key Features: 565 W rated power (STC) for high output per module, boosting system capacity. Mono-PERC half-cell technology, reducing cell cracking, improving shade tolerance, and increasing module efficiency High system voltage rating of 1500 V, enabling longer strings, reduced BOS cost and better wiring economics Large format with 144 cells, allowing more power in a single module footprint Robust build and frame capable of handling high wind and snow loads Cable cross-section and connectors designed for reliable connection in high current settings Low temperature coefficient to maintain output under high ambient temperatures Weather resistance: built to withstand environmental stress, with glass that resists soiling and strong mechanical load capacity Technical Specifications: Maximum power (Pmax): 565 W  Voltage at maximum power (Vmpp): ~ 42.34 V Current at maximum power (Impp): ~ 13.34 A Open-circuit voltage (Voc): ~ 50.47 V Short-circuit current (Isc): (approx.) ~ 14.10 A  Number of cells: 144 (6 × 24) half-cut cells Module dimensions (L × W × H): ~ 2,333 mm × 1,134 mm × 30 mm Weight: ~ 28-30 kg depending on variant  Operating temperature range: -40 °C … +85 °C  Rated maximum system voltage: 1500 V DC Cable cross-section & connectors: ~4 mm² cable, durable connectors suitable for high current & system voltage The JA Solar JAM72S30-565 module is a premium choice for those who need high power, high efficiency, and system-level cost savings in large arrays. Its half-cell design, high voltage rating, and robust build make it a reliable performer in demanding applications. For commercial installs or solar farms, this module offers excellent long-term energy production and value.
