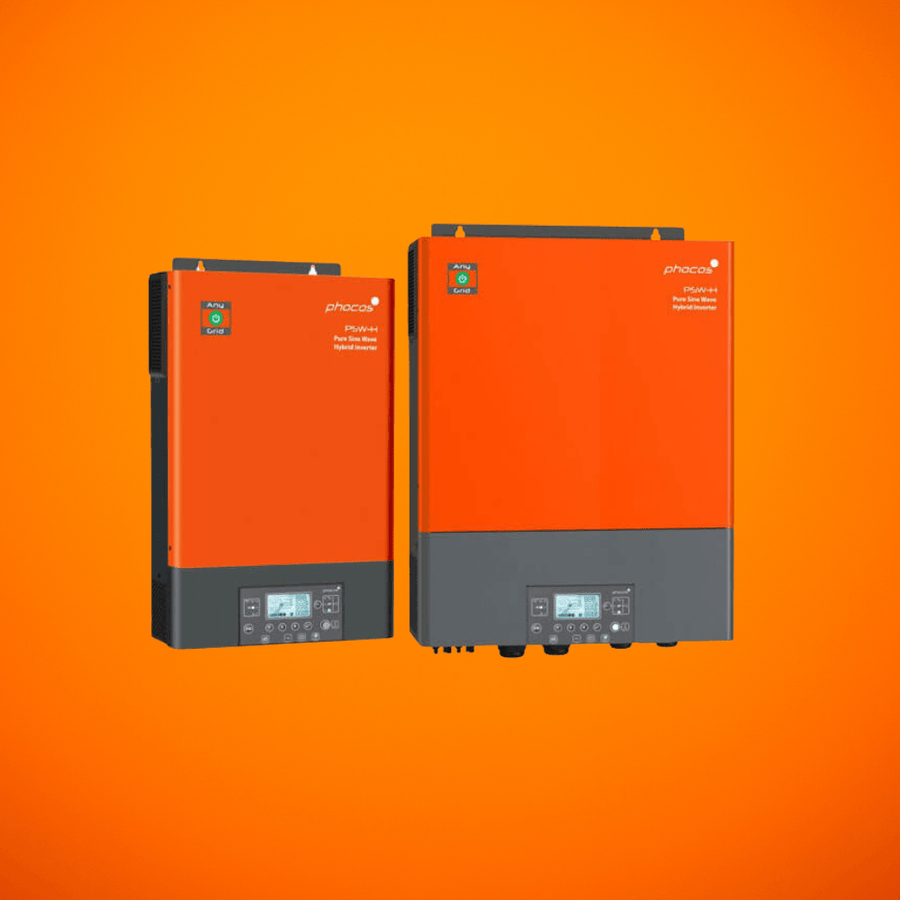

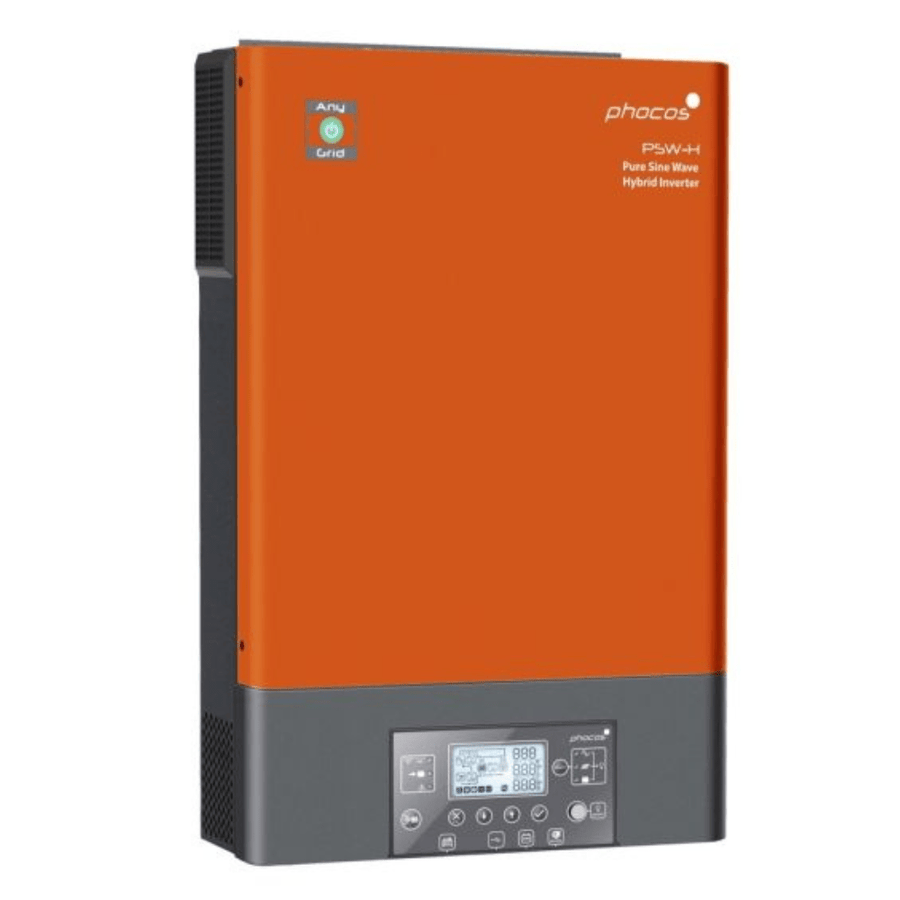

Phocos 3kW Any-Grid Hybrid Inverter Charger – PSW-B-3KW-230/24V

The Phocos Any-Grid PSW-B-3KW-230/24V Hybrid Inverter Charger is a reliable and flexible energy solution designed for residential, commercial, and off-grid applications. With pure sine wave AC output, it ensures safe operation of sensitive appliances and electronics. This unit integrates an MPPT solar charge controller and AC battery charger, enabling seamless energy management from solar panels, the public grid, or a generator. Engineered for efficiency and cost savings, the PSW-B offers UPS functionality with rapid transfer, smart charging priorities, and compatibility with lithium batteries. It is designed to operate reliably under diverse energy conditions while reducing dependence on the grid.
Key Features

Pure sine wave inverter with hybrid functionality
Integrated MPPT charge controller for direct solar connection
Multi-source charging: solar and/or AC (grid or generator)
UPS functionality with fast 10 ms transfer time
Smart programmable charging priorities
Integrated AC battery charger
Compatible with lithium and other battery types
Charge controller operates even when inverter is off
User-friendly display with 3 LEDs, 4 buttons, and LCD screen
Advanced connectivity: RS-232 and USB ports
Integrated buzzer for system alerts
Galvanic isolation and common negative design
Washable dust filter for longer product life

Specifications

Model: PSW-B-3KW-230/24V

Rated Power: 3 kW / 3000 VA

Nominal Battery Voltage: 24V DC

Output Voltage: 230V AC (Pure Sine Wave)

Frequency: 50/60 Hz switch selectable

PV Input: Integrated MPPT charge controller

UPS Transfer Time: ~10 ms (typical)

Display & Indicators: 3 LEDs, LCD, 4 control buttons, buzzer alerts

Connectivity: RS-232, USB

Protections: Overload, short-circuit, under/over voltage, overheating

Cooling & Maintenance: Washable dust filter, integrated fan control

Battery Compatibility: Lithium and lead-acid batteries

Applications: Homes, businesses, off-grid, and backup power setups

The Phocos Any-Grid PSW-B-3kW-230/24V Hybrid Inverter Charger is a reliable energy solution that integrates solar, grid, battery, and generator inputs. With a 3kW capacity, it ensures efficient power conversion, dependable backup, and flexible operation for both residential and small business applications.
