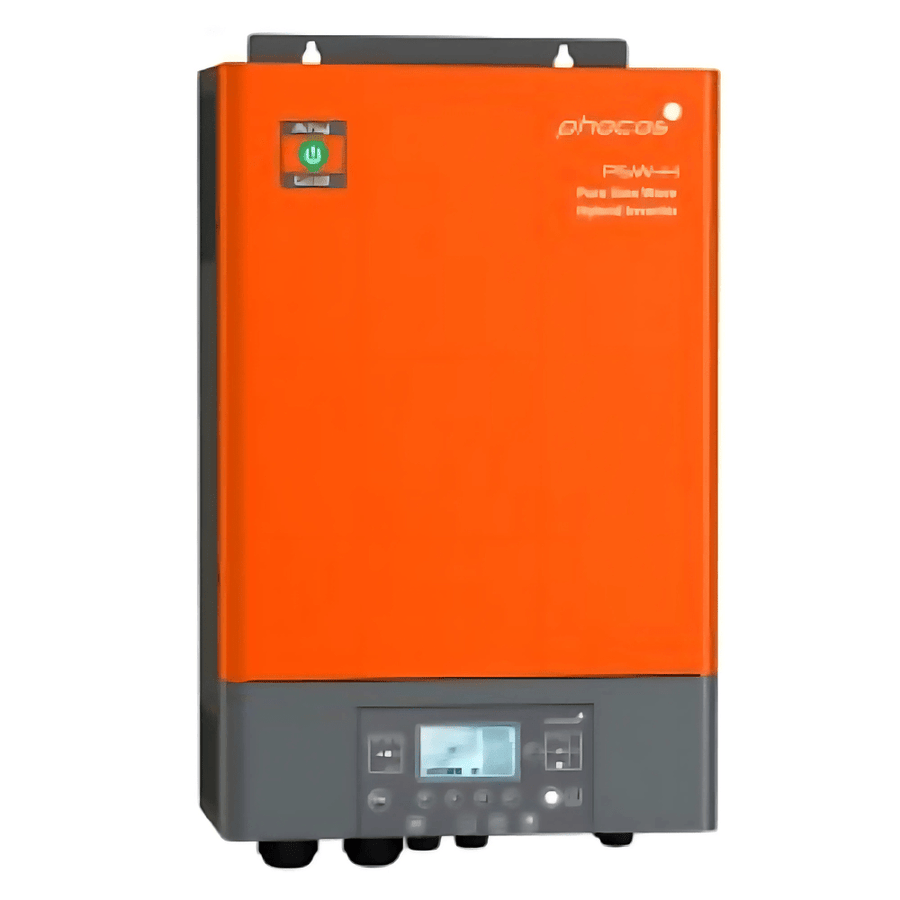

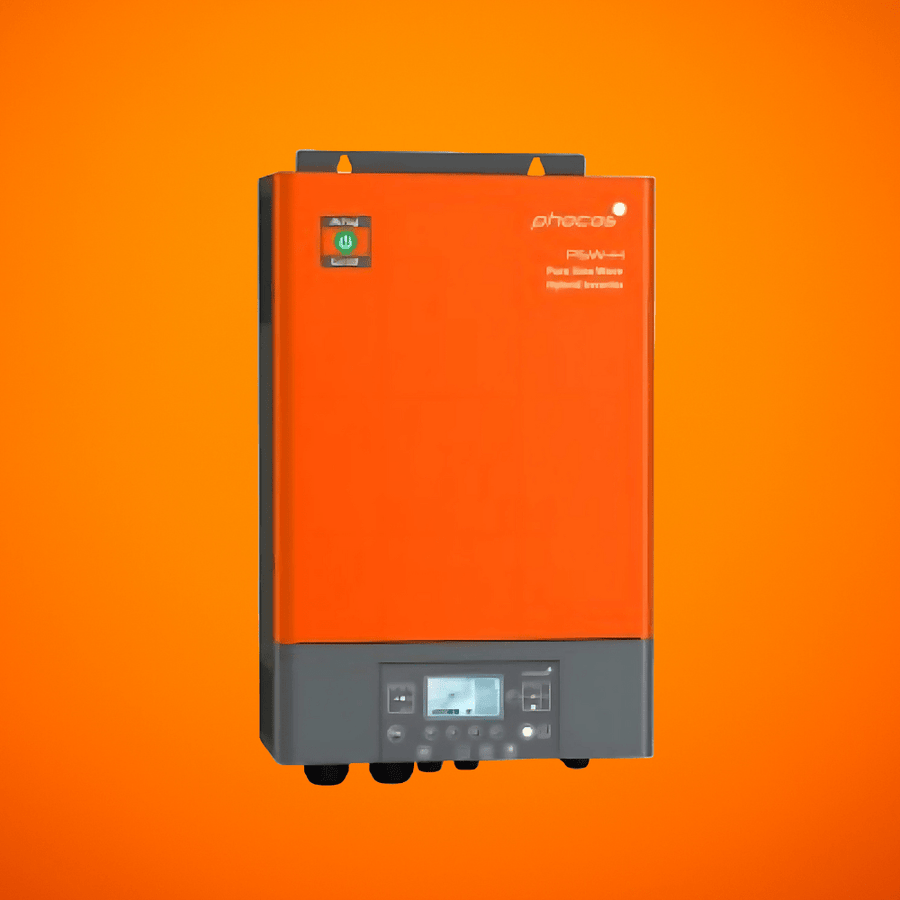

Phocos 3kW Any-Grid Hybrid Inverter Charger – PSW-H-3KW-230/24V

The Phocos Any-Grid PSW-H-3KW-230/24V Hybrid Inverter Charger is a versatile power solution designed for homes, businesses, and mobile applications. Delivering pure sine wave AC output, it ensures reliable performance even with sensitive electronics. With its integrated MPPT charge controller, multi-source charging (solar, grid, or generator), and UPS functionality, it provides uninterrupted power under any condition. This model is engineered for flexibility and cost savings, supporting operation with or without batteries, parallel connection for up to 45kW of synchronized AC power, and smart prioritization between solar, grid, and stored energy. Its high-voltage PV input lowers installation costs, while advanced communication options ensure easy monitoring and system integration.
Key Features

Pure sine wave inverter with hybrid flexibility
Integrated high-voltage MPPT charge controller
Multi-source charging: solar, grid, or generator
UPS functionality with 10 ms transfer time
Operates with or without batteries
Parallel, split-phase, or 3-phase connection (up to 9 units / 45kW)
Detachable display with 6 LEDs + LCD screen
Advanced connectivity: BLE, USB-OTG, RS-485, RS-232, generator relay
Datalogger with 60 days of data storage
Quick configuration via USB (parameter load/store)
Galvanic isolation for flexible grounding (positive or negative)
Removable dust filter for reduced maintenance
Compatible with lithium and other battery types

Specifications

Model: PSW-H-3KW-230/24V

Rated Power: 3 kW / 3000 VA

Nominal Battery Voltage: 24V DC

Output Voltage: 230V AC (Pure Sine Wave)

Frequency: 50/60 Hz switchable

PV Input: High-voltage, supports series PV connections

UPS Transfer Time: ~10 ms (typical)

Parallel Capacity: Up to 9 units / 45kW total

Connectivity: BLE, USB-OTG, RS-485, RS-232, relay

Datalogging: 60 days internal storage

Indicators: 6 LEDs + LCD + buzzer alerts

Cooling & Protection: Integrated protections (overload, short-circuit, overheating) + removable dust filter

Certifications: CE, RoHS compliant

Applications: Residential, commercial, mobile, and off-grid setups

The Phocos Any-Grid PSW-H-3kW-230/24V Hybrid Inverter Charger delivers efficient energy management by combining solar, grid, generator, and battery inputs. With a 3kW output, it is ideal for homes and small businesses, ensuring reliable backup power and flexible off-grid or grid-connected use.
