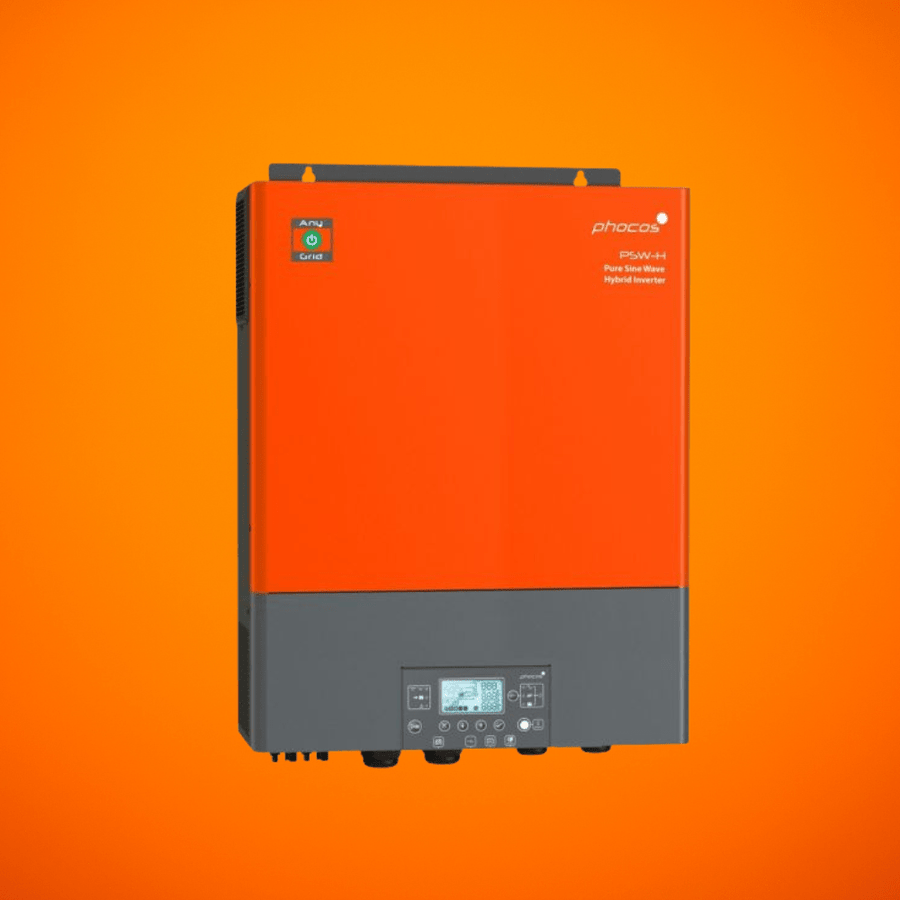

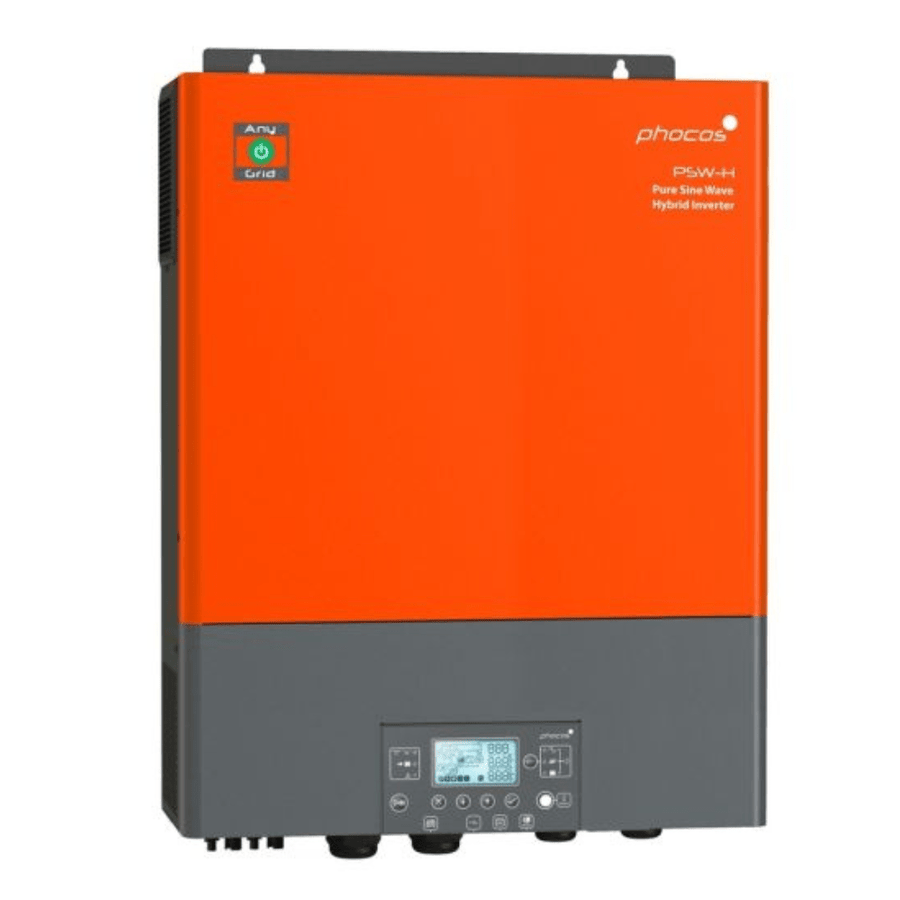

Phocos Any-Grid Hybrid Inverter Charger – PSW-H-8KW-230/48V

The Phocos Any-Grid™ PSW-H-8kW-230/48V Hybrid Inverter Charger is a pure sine wave hybrid solution designed for maximum flexibility in energy management. Engineered for both grid-tied and off-grid applications, it integrates a high-voltage MPPT charge controller, an AC battery charger, and versatile system controls, making it ideal for residential, commercial, and industrial setups. With its ability to prioritize solar, grid, or generator inputs, the Any-Grid inverter reduces energy costs while ensuring uninterrupted supply. In UPS mode, it switches seamlessly to off-grid power in under 10 ms, protecting sensitive equipment from disruptions. It can operate with or without batteries, giving installers and users freedom to design cost-effective solutions.
Key Features

Hybrid inverter charger with solar, grid, and generator inputs

Integrated high-voltage MPPT charge controller (1–2 units) for cost-efficient solar setups

Dual operation modes: with batteries or battery-free

Seamless UPS mode – <10 ms transfer time Remote monitoring & control via PhocosLink Cloud and Any-Bridge™ Flexible connectivity: BLE, USB-OTG, CAN Bus, RS-485, RS-232 Scalable system: up to 9 units for 72 kW total power Compatible with lithium and other battery types Detachable LCD display & 6 LED indicators for ease of use Dust-protected design with washable filter Specifications Model: Phocos Any-Grid PSW-H-8kW-230/48V (PSW-H-8KW-230/48V) Rated Power: 8 kW / 8,000 VA Nominal Battery Voltage: 48V DC PV Input Voltage Range: High-voltage input (up to 450V, depending on model configuration) Integrated MPPT Charge Controller: 1–2 MPPTs, programmable AC Input Voltage: 230V AC (grid or generator) Transfer Time (UPS mode): <10 ms Parallel/Three-Phase Support: Up to 9 units (72 kW total) Supported Battery Types: Lithium, lead-acid, and others Communication Interfaces: BLE, USB-OTG, CAN Bus, RS-485, RS-232, relay output Monitoring & Control: PhocosLink Cloud, Any-Bridge™ AB-PLC, VRM options Data Logging: Up to 60 days internal storage Dimensions: (to confirm from datasheet) Weight: (to confirm from datasheet) The Phocos Any-Grid PSW-H-8kW-230/48V is a versatile hybrid inverter and charger designed for reliable energy supply. With 8kW power output, it seamlessly integrates grid, generator, battery, and solar inputs, offering flexible energy management, backup functionality, and high efficiency for both residential and commercial systems.
