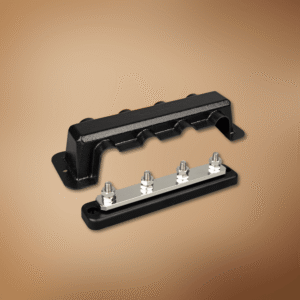

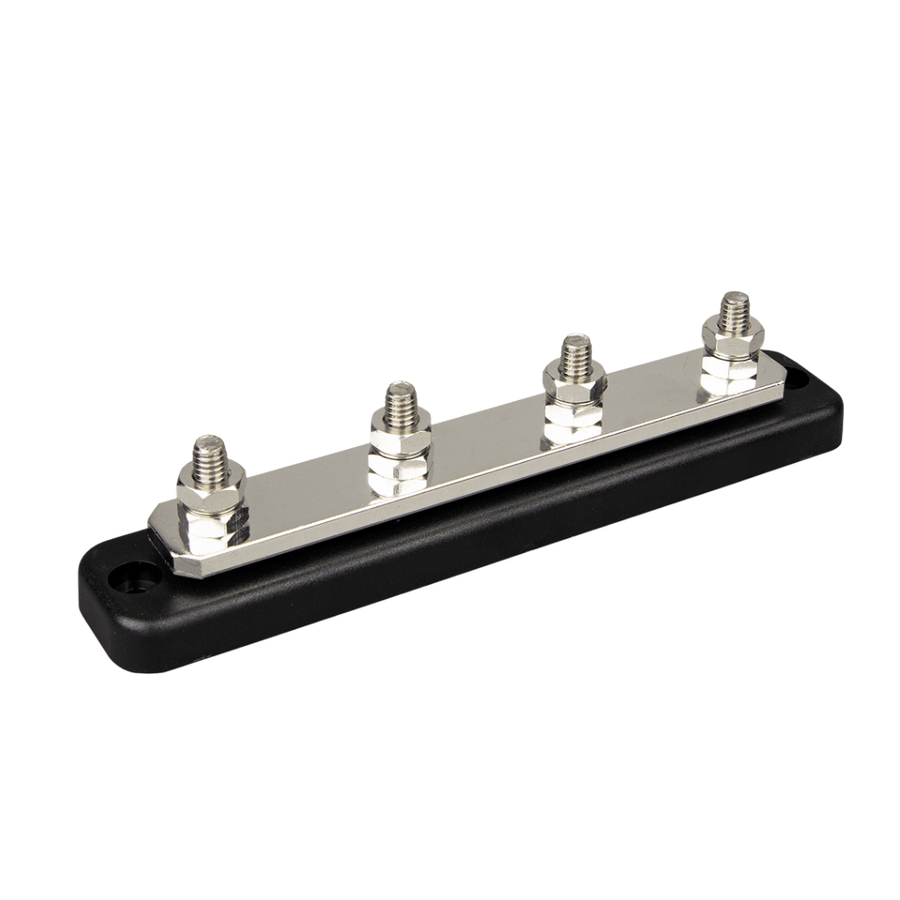

The Victron Energy 250A 4P + Cover Busbar (model VBB125040010) is a premium DC distribution block engineered for high-performance solar and battery systems. It consolidates up to four high-current connections in one compact, robust unit and includes a protective cover to shield against accidental shorts. This busbar is ideal for mid-to-large installations where efficiency, proper cable management, and safety are essential.
By using this Victron busbar, your customers can simplify wiring, reduce voltage drop, and maintain a clean, professional layout. The high-quality copper bar, stainless terminals, and durable cover support long-term reliability—even in demanding setups.
Key Features:
Rated for 250 A continuous DC current, supporting heavy loads and robust systems
Four output poles (4P) to distribute power to multiple DC circuits or devices
Protective ABS cover (UL-rated) included to prevent accidental contact, shorts, and dust ingress
Stainless steel terminals (5/16″ or ~8 mm diameter) for strong mechanical connection and corrosion resistance
Tin-plated copper busbar (5 × 24 mm cross-section) for low resistance and efficient current handling
Insulating base material ABS (UL 94 V-0) and cover ABS (UL 94 V-2) for safe insulation and structural support
Compact dimensions (with cover): 48 mm × 237 mm × 70 mm (H × W × D)
Torque spec for terminals: ~13 N·m (110 lbf·inch) for reliable connections
Technical Specifications:
Maximum current rating: 250 A DC
Maximum DC voltage rating: 70 V DC
Terminal diameter: 5/16 inch (~8 mm)
Terminal height: ~17 mm above busbar surface
Busbar strip dimensions: 5 × 24 mm (copper, tin-plated)
Base / insulator material: ABS, UL 94 V-0 rating
Cover material: ABS, UL 94 V-2 rating
Dimensions (with cover): 48 mm × 237 mm × 70 mm
Recommended torque: 13 N·m (110 lbf·inch)
Weight (4-terminal version): ~0.24 kg
The Victron VBB125040010 (250A 4P Busbar + Cover) is an essential component for any high-current DC system. It streamlines distribution, reduces wiring clutter, and enhances safety with its protective cover. When building high-capacity solar, battery, or hybrid setups, this busbar helps maintain clean layouts, reduce voltage losses, and provide secure, reliable connections.
