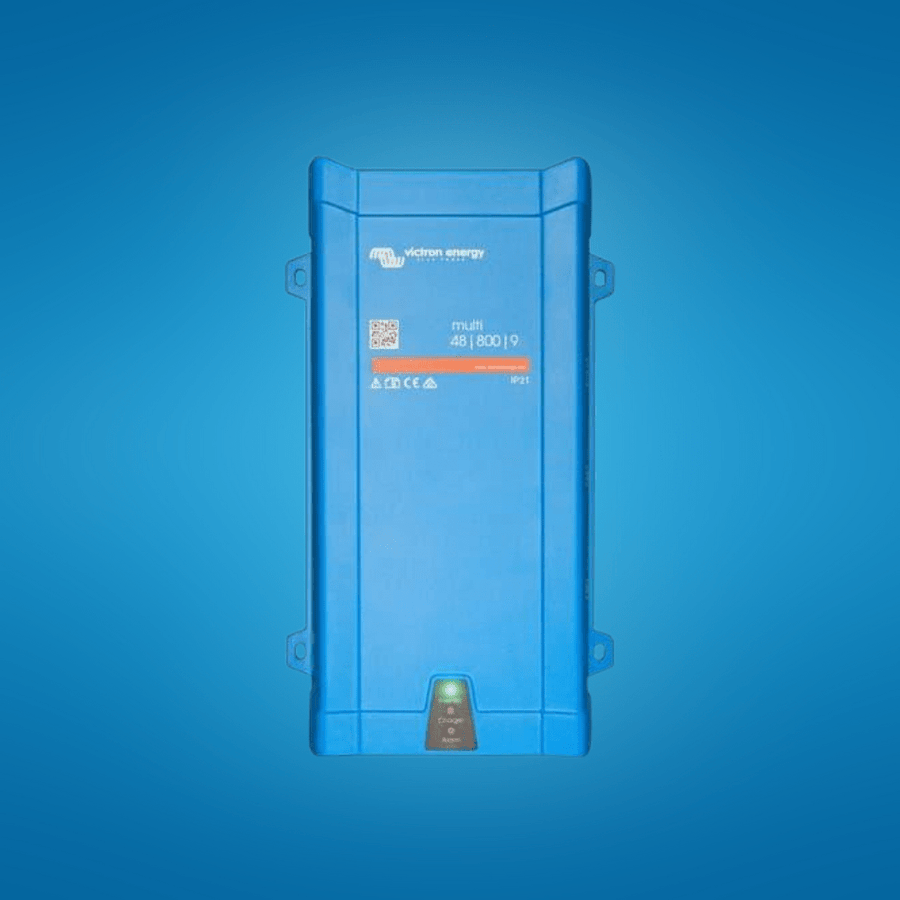

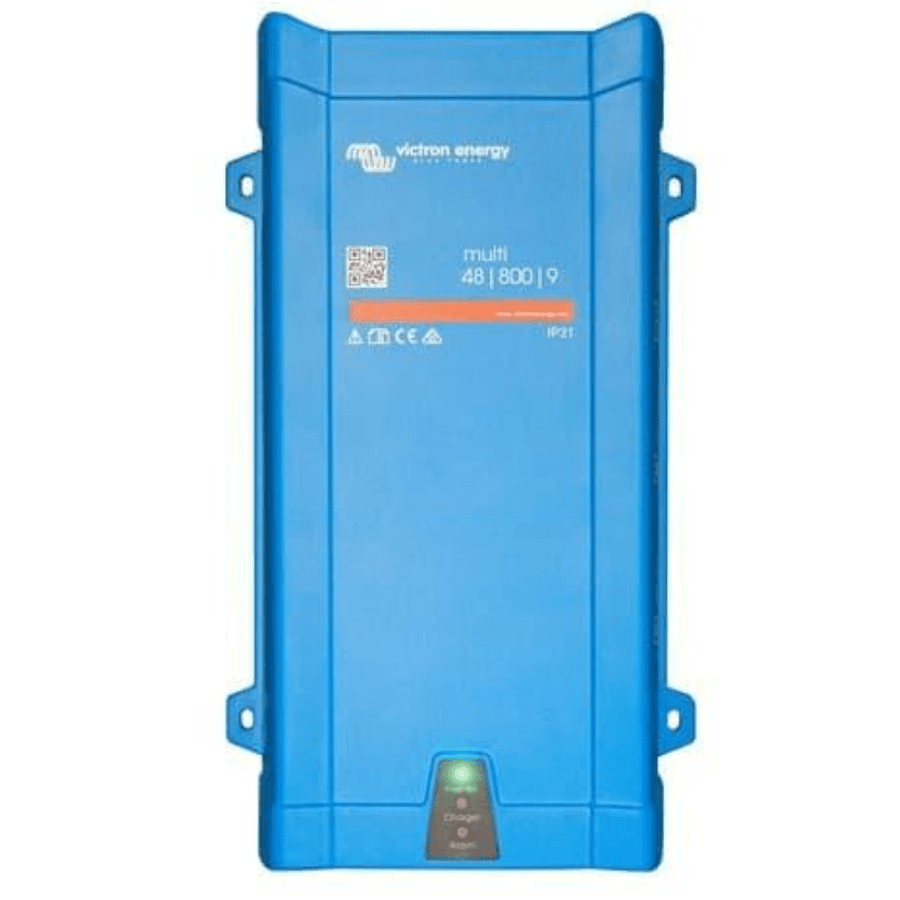

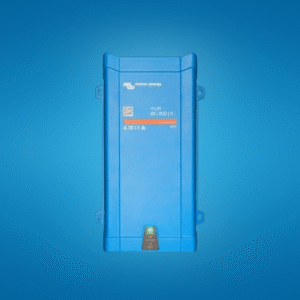

Victron Energy Multiplus 48/1600/20-16 230v VE.Bus Hybrid Inverter Charger – PMP482160000

The Vitron Energy MultiPlus 48/1600/20-16 230V VE.Bus Hybrid Inverter Charger – PMP482160000 is a versatile all-in-one power management solution designed to meet the demands of off-grid, backup, and industrial energy systems. Combining a pure sine wave inverter, adaptive battery charger, and a high-speed AC transfer switch in one compact unit, it guarantees reliable and efficient performance in even the most demanding setups. With features like parallel operation for higher output, three-phase configuration, PowerAssist, and PowerControl, this unit ensures seamless energy supply, smart load management, and extended battery life. Designed for flexibility and reliability, it is suitable for homes, businesses, and critical commercial installations.
Key Features

Parallel & Three-Phase Operation: Supports up to 6 units in parallel and 3-phase setup for industrial applications

PowerControl: Manages limited generator or grid current to prevent overload

PowerAssist: Boosts capacity by supplementing grid or generator power with battery energy

Adaptive Charging: 4-stage battery charging process extends battery lifespan

Dual Bank Charging: Simultaneous charging of main battery bank and auxiliary battery

High Start-Up Power: Handles heavy inrush loads like power tools and lighting

Energy-Saving Search Mode: Reduces power consumption by ~70% in no-load situations

Programmable Relay & Remote Options: Customizable for advanced energy management

Remote Monitoring: Compatible with Cerbo GX and other GX devices for VRM platform access

Specifications

Model: PMP482160000

Input Voltage: 48V DC

Output Voltage: 230V AC

Output Power: 1600VA

Charging Current: 20A DC

Transfer Switch: 16A

Waveform: Pure Sine Wave

Connectivity: VE.Bus for configuration and monitoring

Application: Hybrid inverter for off-grid, backup, and industrial systems

Brand: Victron Energy

The Vitron Energy MultiPlus 48/1600/20-16 VE.Bus Hybrid Inverter Charger combines reliable inverter performance with smart battery charging in a compact design. Ideal for small residential or backup systems, it ensures smooth energy transfer between grid, solar, or generator sources with dependable efficiency.
