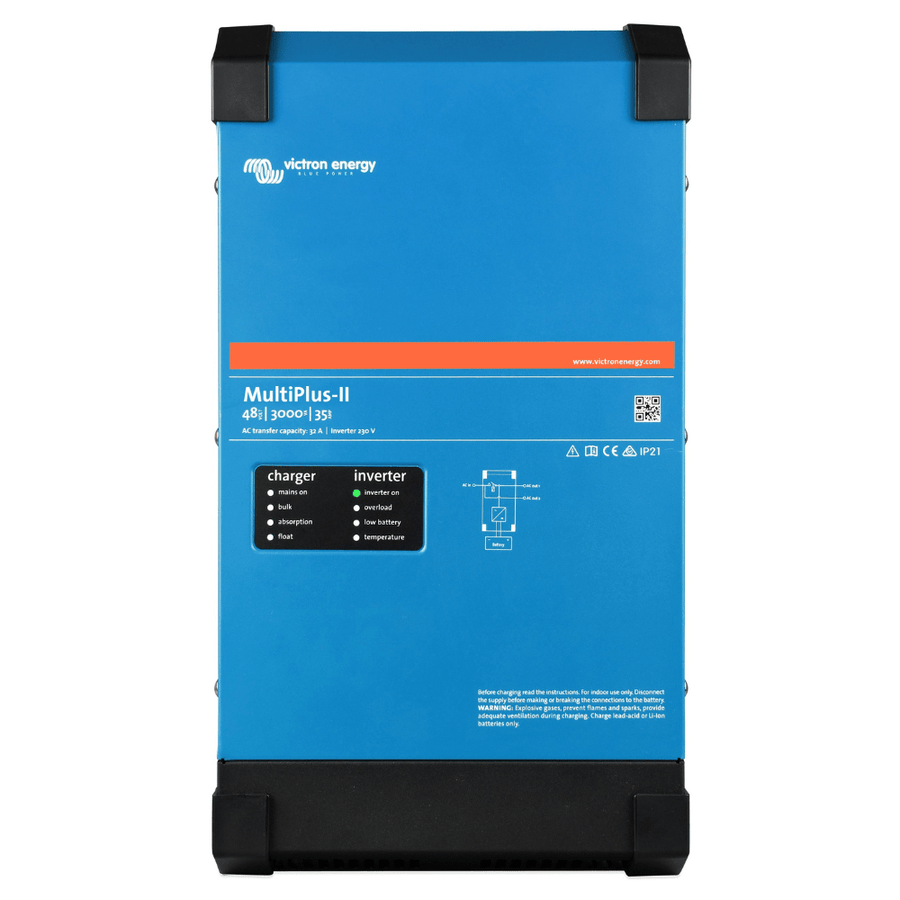

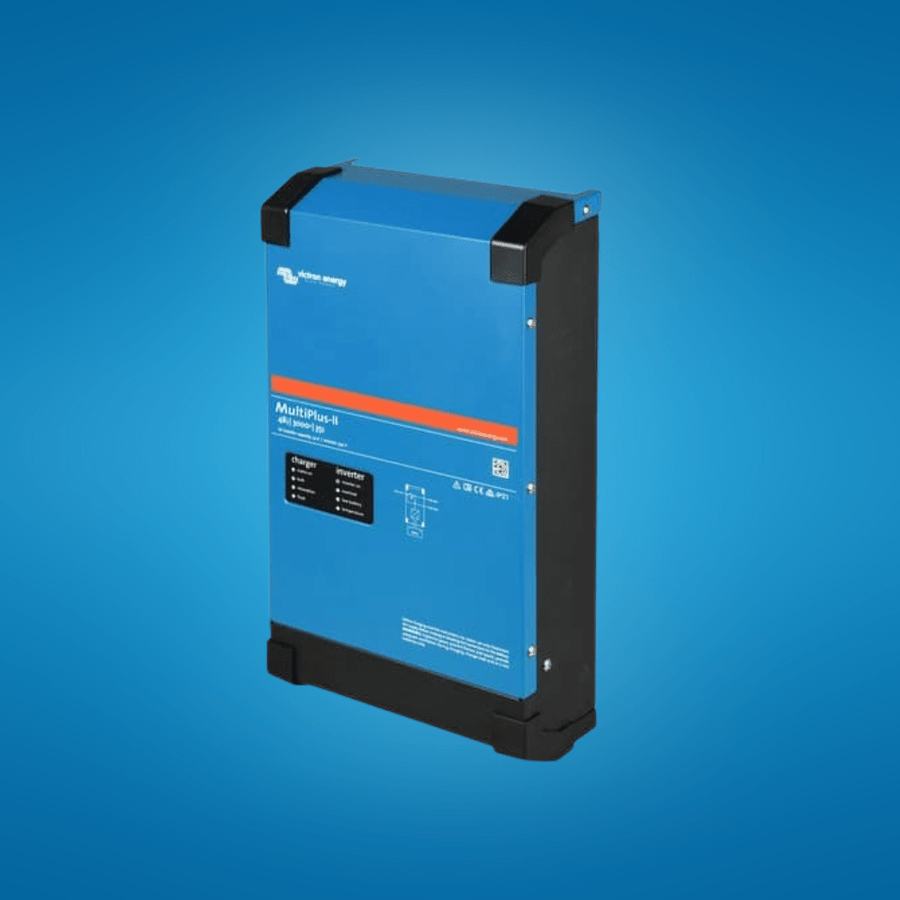

Victron Energy Multiplus-II 48/3000/35-32 230V Hybrid Inverter Charger – PMP482305010

The Vitron Energy MultiPlus-II 48/3000/35-32 230V Hybrid Inverter Charger – PMP482305010 combines inverter, charger, and transfer switch functions into one compact solution. Designed in a taller, slimmer case with an improved terminal layout, it is ideal for modern installations where space and efficiency matter. This model offers all the features of the MultiPlus, plus the option to add an external current transformer (CT). This enables PowerControl and PowerAssist functions and optimizes self-consumption through advanced current sensing. With a 48V DC input and 230V AC output, the MultiPlus-II delivers reliable pure sinewave power, making it suitable for grid-connected, off-grid, and backup energy systems. It comes with a 35A DC charging capacity and a 32A transfer switch, ensuring seamless power management. The system is fully programmable via the Mk3 USB interface, and supports optional integration with a Remote Panel or Cerbo GX for enhanced monitoring and control.
Key Features

Combines inverter, charger, and transfer switch functions
Supports PowerControl and PowerAssist with external CT option
Optimized self-consumption with external current sensing
48V DC input / 230V AC pure sinewave output
Compact, slim design with improved terminal layout
Fully programmable via Mk3 USB interface
Compatible with optional Remote Panel and Cerbo GX

Specifications

Model: MultiPlus-II PMP482305010

Input Voltage: 48V DC

Output Voltage: 230V AC

Wattage: 3000VA

Charging Capacity: 35A DC

Transfer Switch: 32A

Waveform: Pure Sinewave

Application: Hybrid Inverter Charger (Grid-tied, Off-grid, Backup)

Warranty: 5 Years

Brand: Victron Energy

The Vitron Energy MultiPlus-II 48/3000/35-32 Hybrid Inverter Charger combines inverter power, advanced battery charging, and seamless switching between grid, solar, or generator inputs. Compact and versatile, it ensures reliable energy management for residential and light commercial systems while offering scalable performance.
