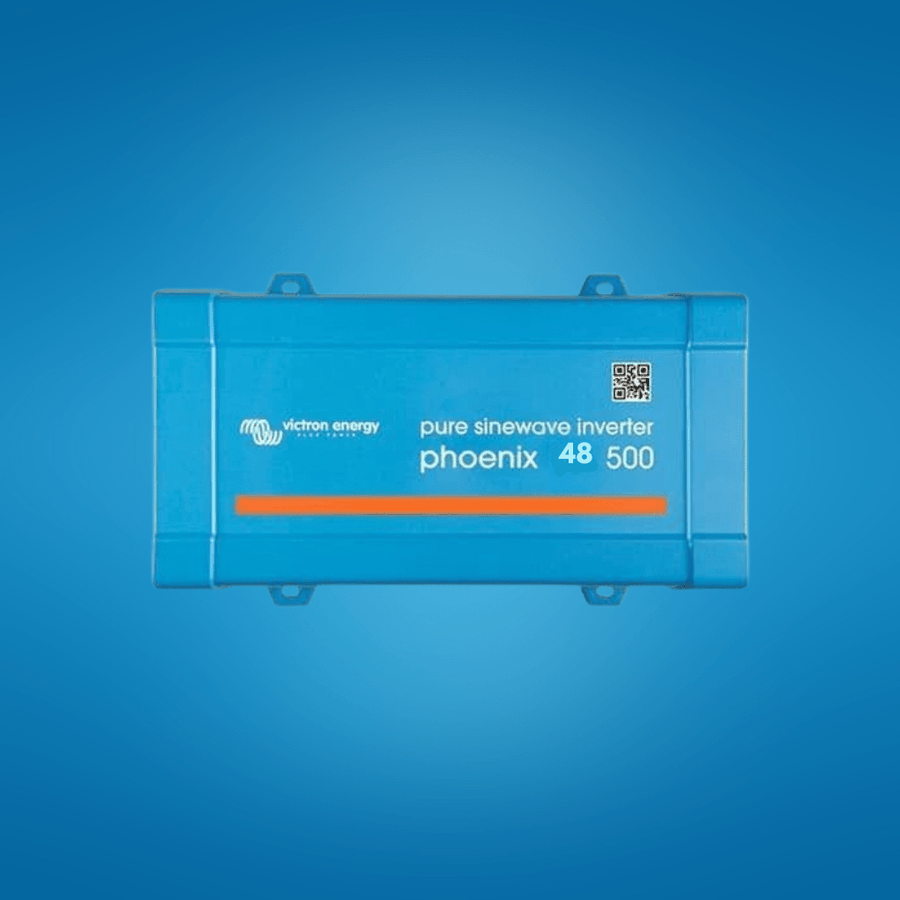

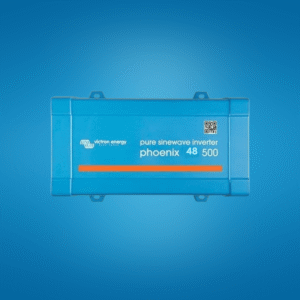

Victron Energy Phoenix Inverter 48/500 VE.Direct UK – PIN485010400

The Victron Phoenix Inverter 48/500 delivers clean, reliable 230V AC power from a 48V battery system. Ideal for small-scale applications, this compact inverter features a pure sine wave output, making it safe for sensitive electronics like laptops, lighting, and communication devices. With its VE.Direct communication port, you can easily monitor performance and adjust settings via a smartphone or computer. Built with Victron’s proven toroidal transformer technology, it offers high surge capacity (900W) for starting small motors and tools, all in a rugged, IP21-rated casing.
Key Features

500VA Pure Sine Wave Output: Clean power for sensitive electronics and small appliances

VE.Direct Communication Port: Connect to smartphones or computers for monitoring and configuration

High Surge Capacity: 900W peak power for starting motors and inductive loads

ECO Mode: Reduces standby power consumption by switching off during low load

Compact and Lightweight: Easy to install in tight spaces with screw terminal connections

Remote On/Off Ready: External switch compatibility for convenient control

UK Socket Included: Ready to use with standard UK plugs

Technical Specifications

Model: PIN485010400

Continuous Power: 500VA

Peak Power: 900W

Input Voltage: 48V DC

Output: 230V AC, 50/60Hz (selectable)

Efficiency: Up to 91%

Socket Type: UK 3-pin

Protection Rating: IP21

Dimensions: 275mm (D) x 172mm (W) x 86mm (H)

Weight: 3.9 kg

The Victron Phoenix Inverter 48/500 combines compact design with professional performance, offering a dependable power solution for small-scale energy needs. Its communication capabilities and efficient operation make it a smart choice for users seeking reliability and control in a compact package
