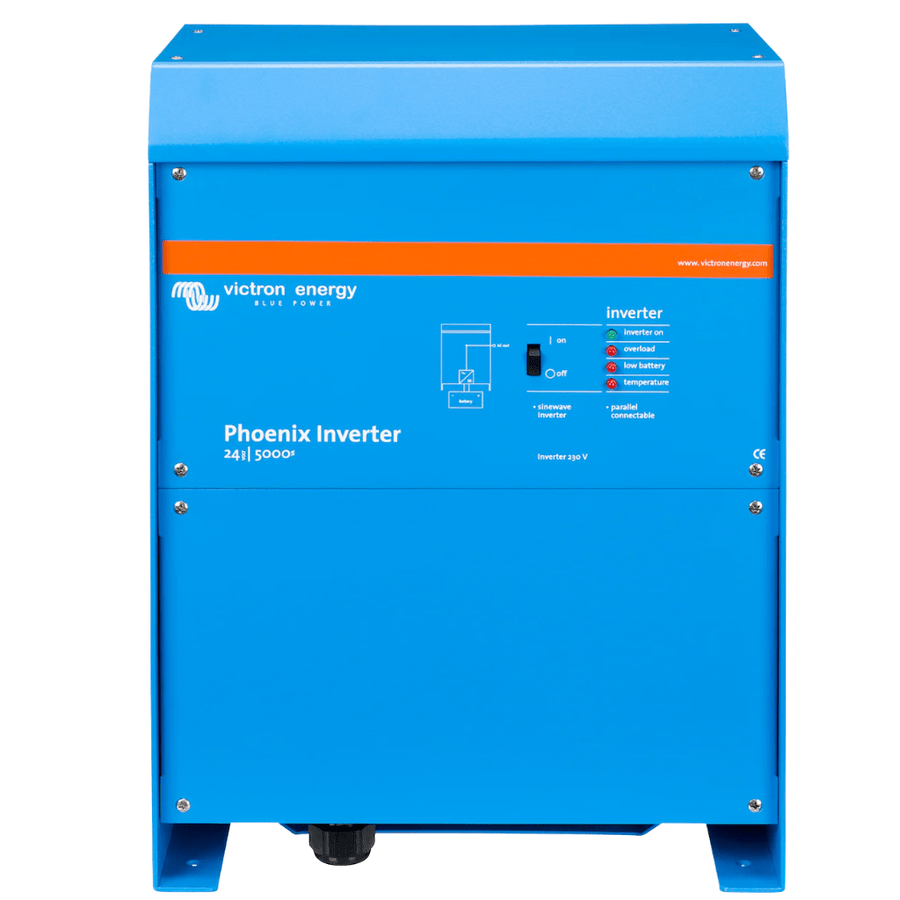

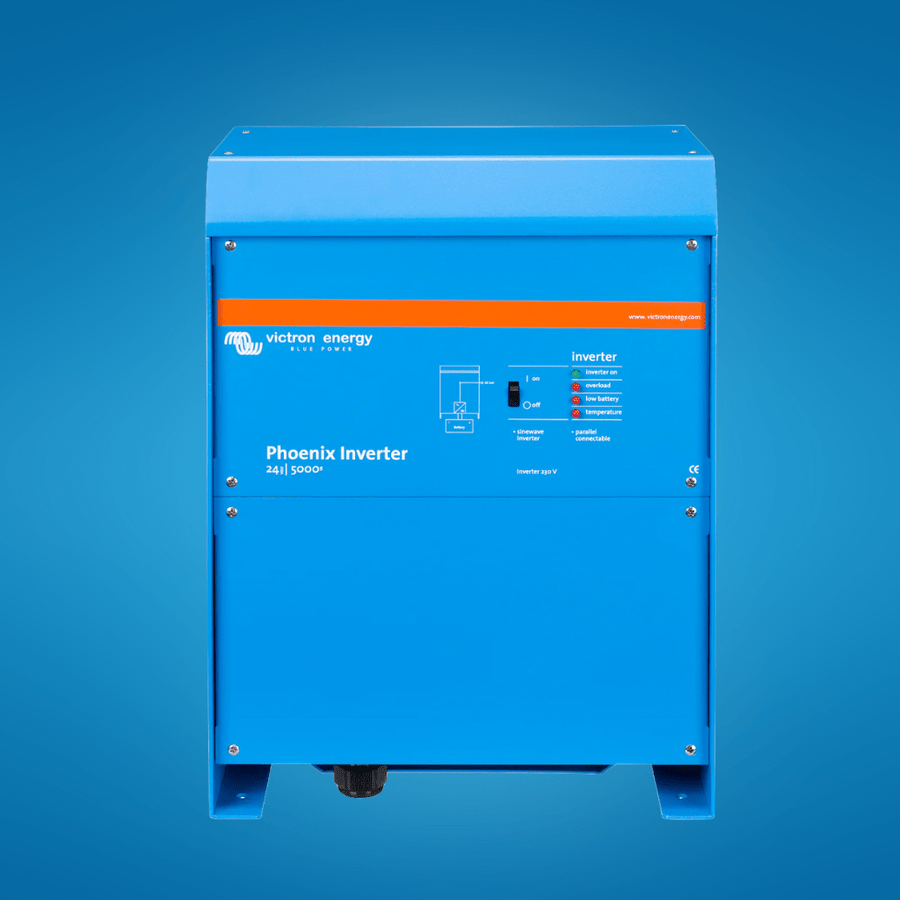

Meet the pinnacle of mobile power conversion with the Victron Phoenix Inverter 24/5000. This professional-grade 5000VA pure sine wave inverter delivers massive 4000W continuous power with exceptional 10,000W surge capacity. Featuring advanced SinusMax technology and parallel operation capability, it’s engineered for demanding applications in marine, RV, and industrial environments where reliable high-power performance is essential.
Key Features
Pure sine wave output – Clean power for sensitive electronics and heavy equipment
Parallel operation – Connect up to 6 units for expanded power systems
Three-phase capability – Configure multiple units for three-phase power
SinusMax technology – Hybrid design for optimal efficiency and performance
Massive surge capacity – 10,000W peak power for demanding motor starts
Computer interface – RS-485 port for system configuration and monitoring
Professional construction – Heavy-duty design for continuous operation
Technical Specifications
Continuous power: 4000W (5000VA)
Peak power: 10,000W
Input voltage: 24V DC
Output: 230V AC ±2%, 50Hz ±0.1%
Battery connection: 2+2 M8 bolts
Dimensions: 444 × 328 × 240 mm
Weight: 30 kg
Humidity tolerance: Maximum 95% (non-condensing)
Applications
Large marine systems – Commercial vessels and superyachts
Professional RV installations – Large motorhomes and commercial vehicles
Off-grid power systems – Remote homes and industrial sites
Critical backup power – Telecommunications and medical facilities
High-power professional performance – The Phoenix Inverter 24/5000 represents Victron’s engineering excellence, delivering massive power capacity with the flexibility to scale systems for the most demanding applications. Ideal for users who require industrial-grade performance in mobile or stationary power systems
